Symphonic Q – 01 (SQ-01)

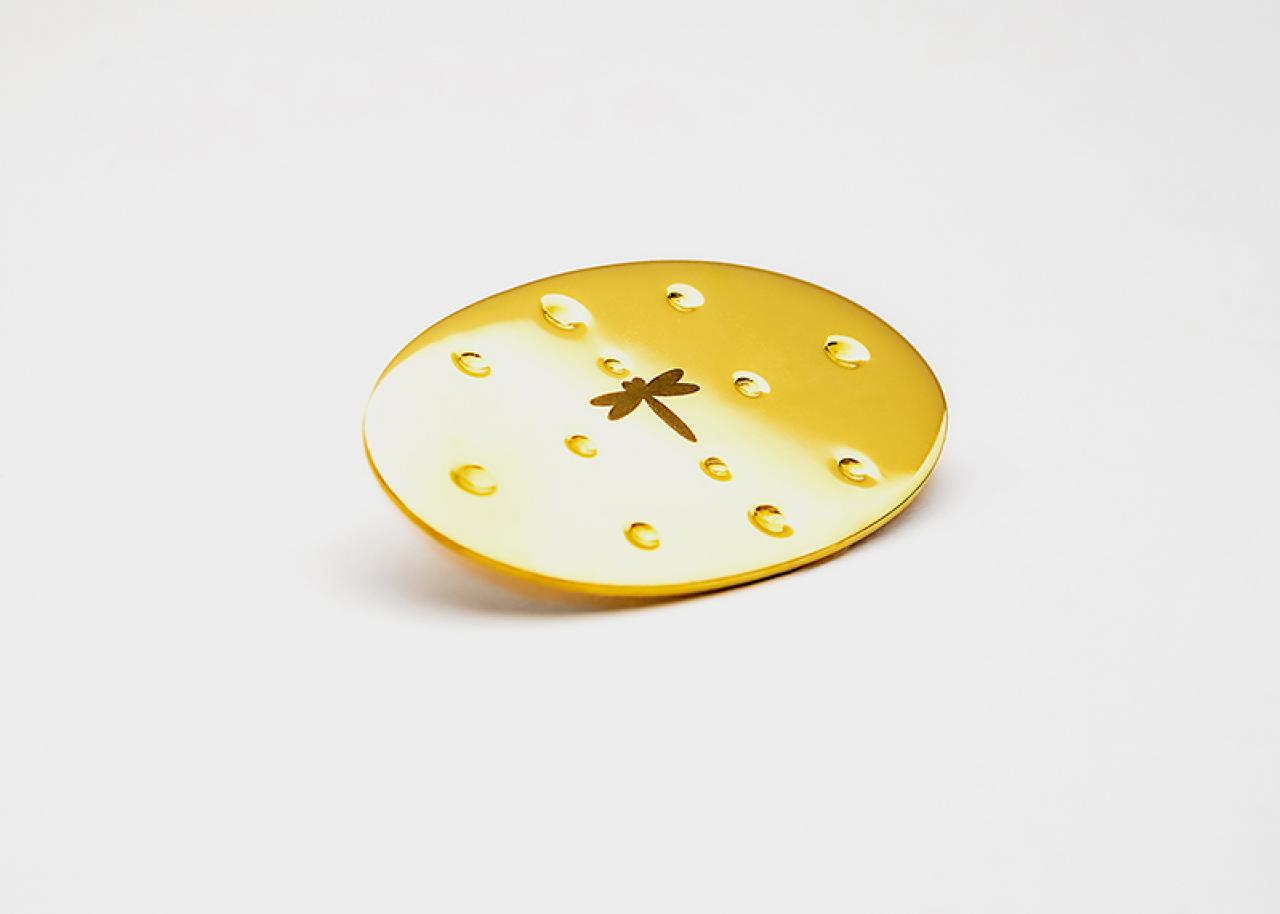

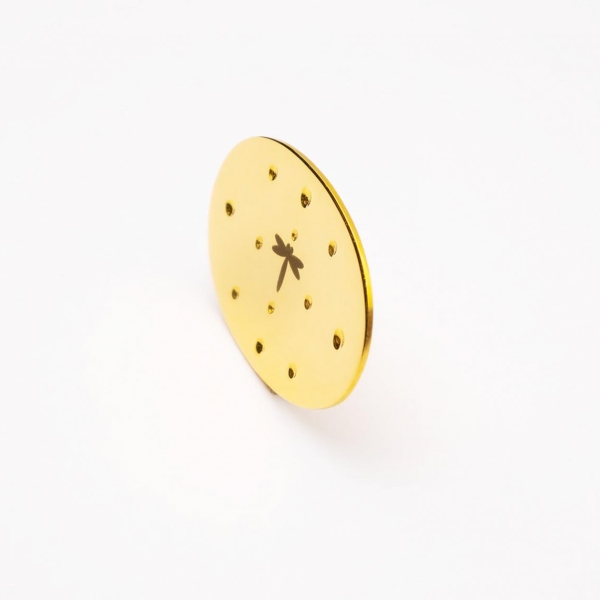

We took those specific points from these patterns and created a Symphonic Q-01 or SQ-01 that would act as an organizer. After we install this piece in the sensitive area between tweeter and woofer, the resonance that is generated on the surface of the SQ-01 will be decreased along the marked pattern and diffraction issues on the speaker are minimized. This solution is different and superior to traditional methods such as using a sponge to absorb resonance and SQ-01 will not change the tonal balance and harmonics of the speaker. Detail
PRICE: $345
Detail
For every speaker designs, the designers are aware of diffraction from the baffle and in fact, the diffraction occurs all over the speaker, especially from low frequency. The most sensitive area of diffraction is allocated between the tweeter and woofer. This area will be amplified in form of boosting or canceling the frequencies which is unpredictable, resulting in phase shifting from the reflecting sound of the diffraction.
In the case of bass-reflex or port design such as transmission line etc., the same resonance problem will be encountered. The diffraction was also caused around the port area, which is the same as between the tweeter and woofer.
We found a solution to solve this problem by studying the resonated of each frequency which created diffraction. The pattern of every frequency has the same specific resonated point which creates interference with each other as shown in the pictures.
.jpg)

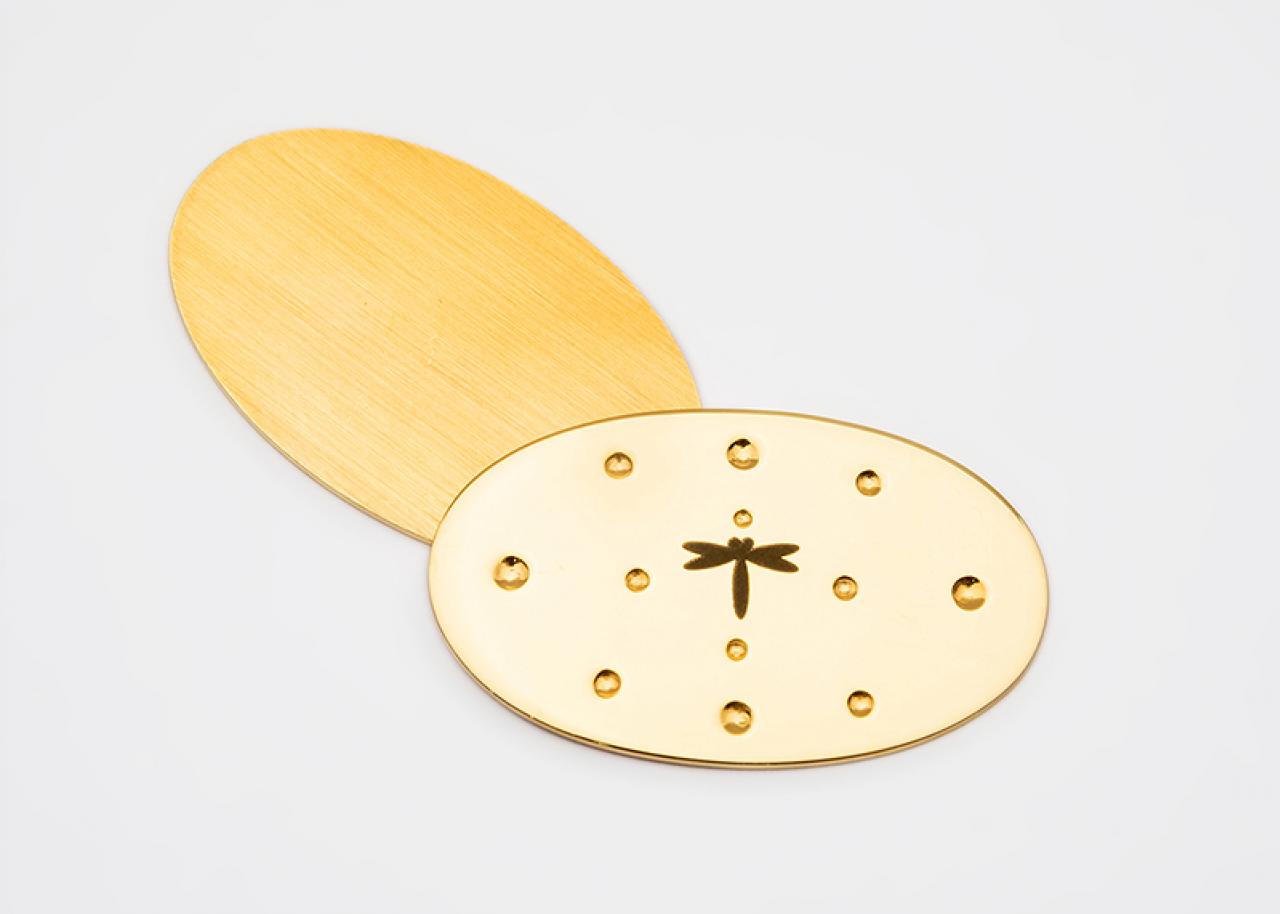

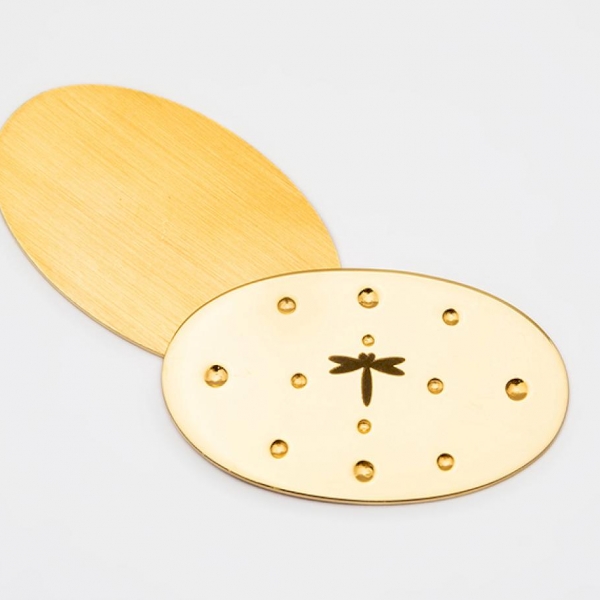

The selection of precious metal materials for making SQ-01 such as brass, gold, silver and platinum has a specific purpose. Each metal has its own unique sound harmonic. Mixing these metals in the right ratio creates beautiful harmonics that are pleasing for human ears.
.jpg)
Key Features
1. After the resonance is organized, the sound will be more airy and the dynamic range is wider.
2. Details are more pinpointed and the sound stage is clearer and more precise.
Instruction

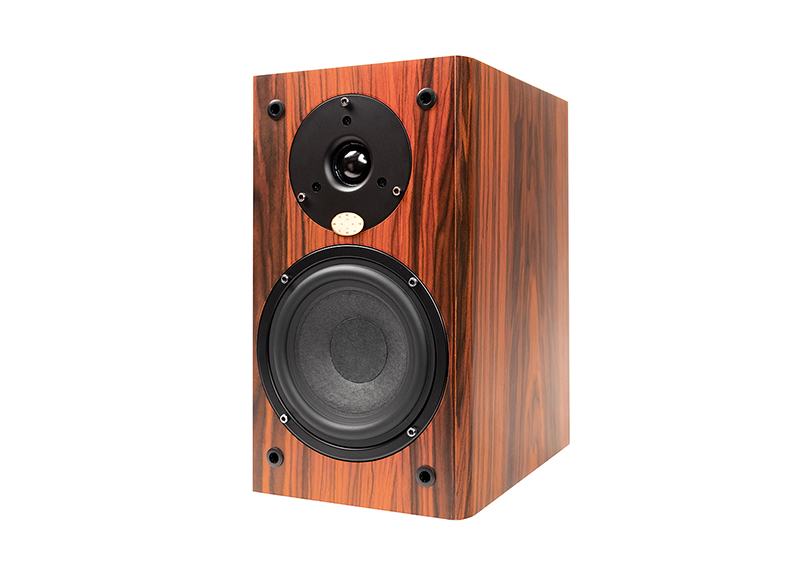

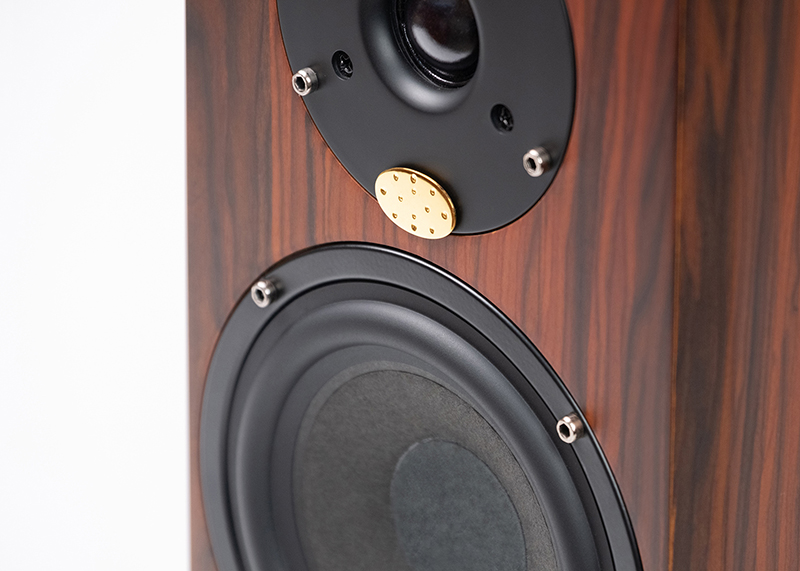

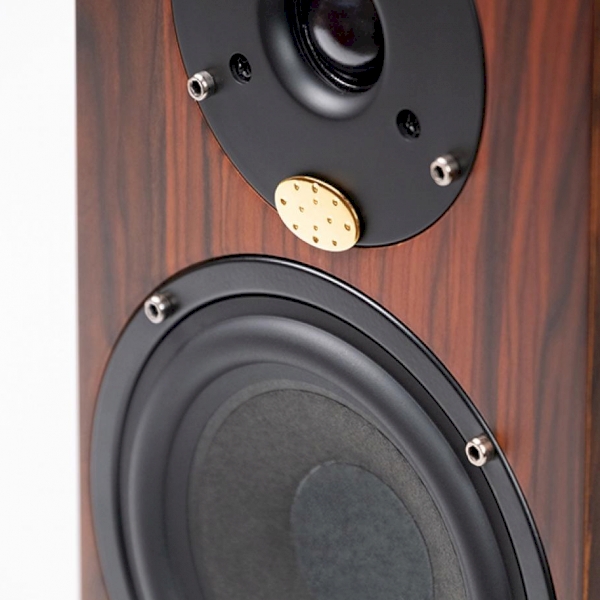

1. Attach SQ-01 to the middle area between tweeter and woofer as shown in the picture.
2. In the case of a port designed, it may attach to above or under the port to manage overall low frequency.
.jpg)
Specification
Materials: Brass, Gold, Silver and Platinum
Color: Glossy Gold
Dimension:
Weight:
Caution
1. Since SQ-01 has high accuracy and a complicated design, carrying or changing positions with extra attention. Also, ensure that SQ-01 is placed away from children.
2. SQ-01 must be used in the audio system only. Tombo Audio will not be responsible for any liability in any misconduct/wrongdoing used.
